CNC Press Brake 130T/3200 · ET15 control
CNC press brake, 130 ton (1,300 kN), 3,200 mm bed, 4+1 axes (X, Y1, Y2, R + V), 200 mm ram stroke. For sheet metal, cabinets and steel structures. In stock in Vietnam.
Machines available in Vietnam · Nationwide customer support
Quotation includes: VAT · Delivery and on-site installation · Operator training · 12-month warranty · See full policy →
If it's the machine, it's on us.
Detail photos
9 images
Not sure this model has enough bending force?
Technical specifications
CNC Press Brake 130T/3200 · ET15 control
Compare the information with your material, part dimensions and expected output to select the right configuration.
Model130T/3200
Lực chấn danh nghĩa130 tấn (1300 kN)
Chiều dài làm việc3200 mm

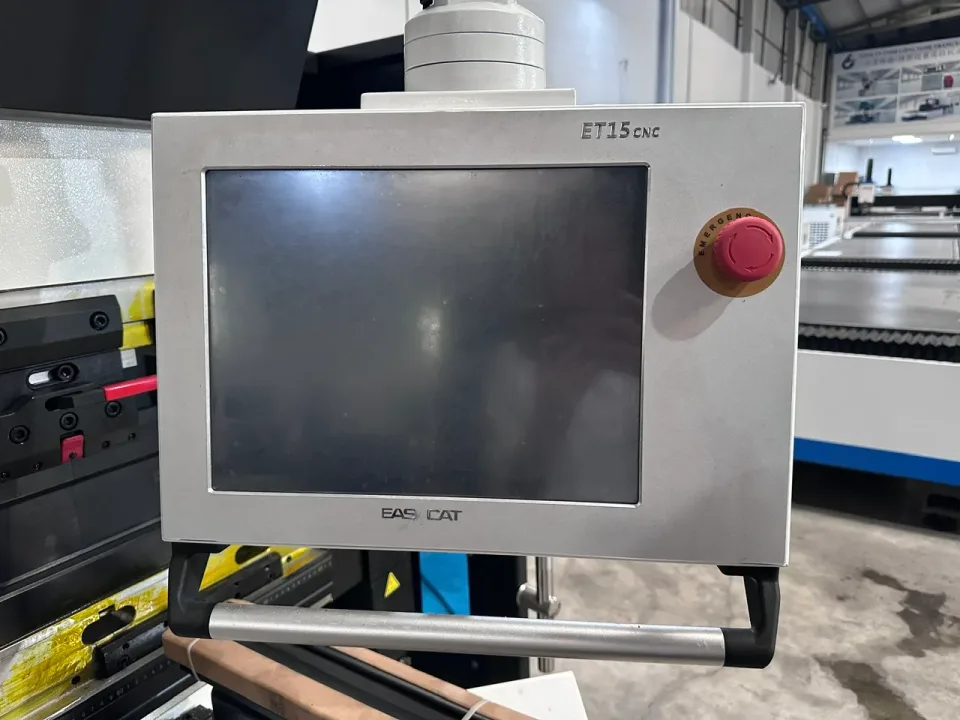

Hệ thống điều khiểnET15
Chiều dài bàn chấn3200 mm
Khoảng cách giữa hai trụ2600 mm
Độ sâu họng máy340 mm
Hành trình trượt (Y)200 mm
Chiều cao mở tối đa470 mm
Tốc độ trượtXuống nhanh: 160 mm/s Làm việc: 8 mm/s Hồi về: 120 mm/s

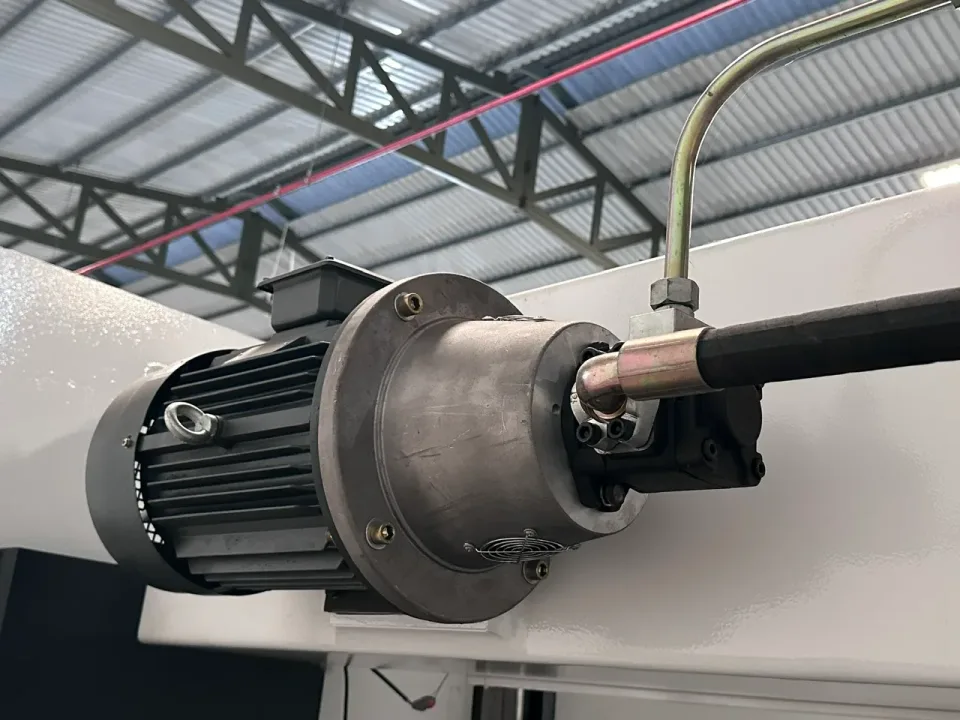

Động cơ chính7.5 kW
Bơm thủy lựcCP-16
Hệ điều khiển CNCET15
Số trục điều khiển4+1 trục (X, Y1, Y2, R + V)
Độ dày thành máy50 mm
Độ dày bàn trượt50 mm
Độ dày bàn đỡ60 mm
Hành trình trục X520 mm
Tốc độ trục X350 mm/s
Hành trình trục R160 mm
Tốc độ trục R200 mm/s
Độ chính xác lặp lại trục X/R±0.05 mm
Độ chính xác định vị trục X/R±0.02 mm
Kích thước máy (D × R × C)3950 × 1520 × 2550 mm (không bao gồm tay đỡ trước)
Dung tích thùng dầu300 L
Hệ thống CNCET15
NKAMComponent configuration can be specified to order; the final configuration is stated in the contract.
Configuration
WE67K-135T/2500
Nominal bending force1350KN
Table length2500mm
Table width90mm
Distance between housings2000mm
Throat depth340mm
Ram stroke200mm
Max. open height470mm
Ram speedTrượt xuống 160, hồi về 120, làm việc 8
Main motor power11KW
CNC systemET15
Controlled axes4+1 trục (X, Y1, Y2, R+V)
Side plate thickness50mm
Ram thickness50mm
Bolster plate thickness60mm

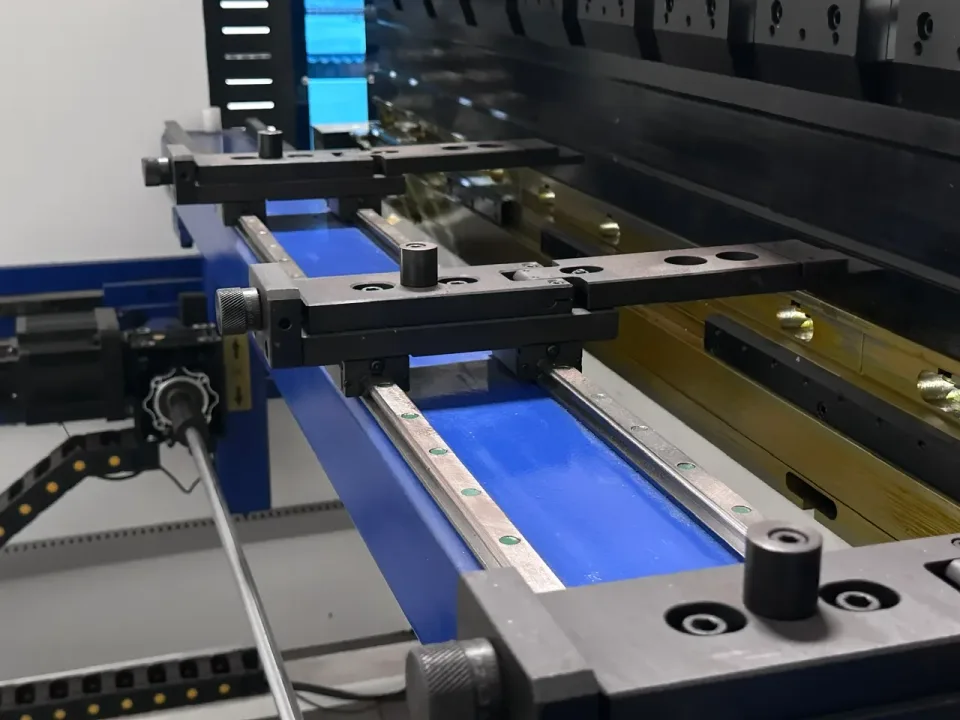

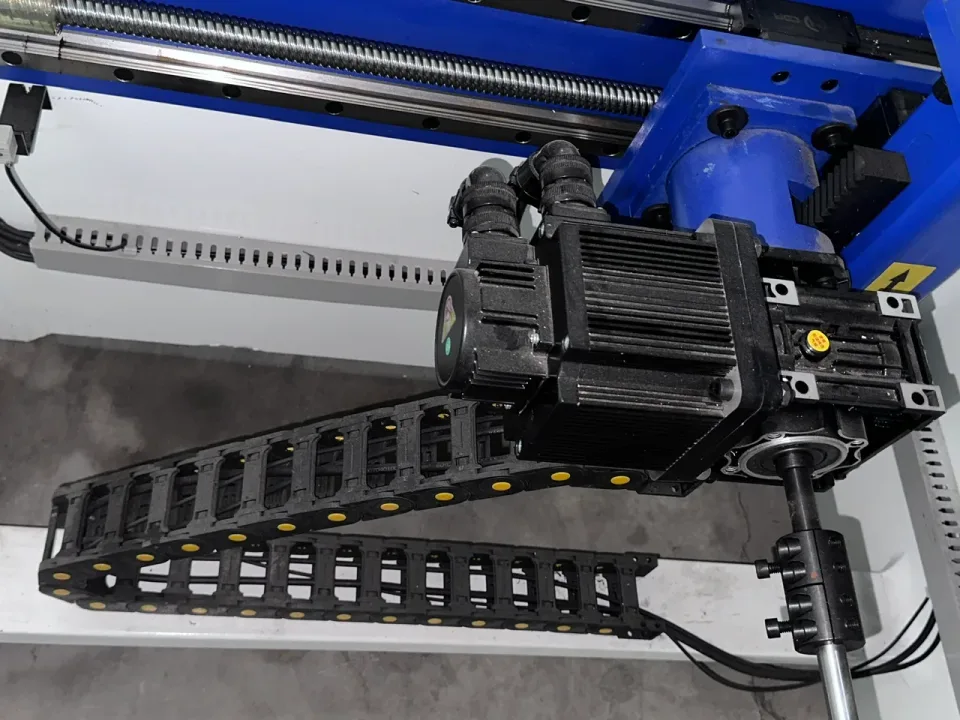

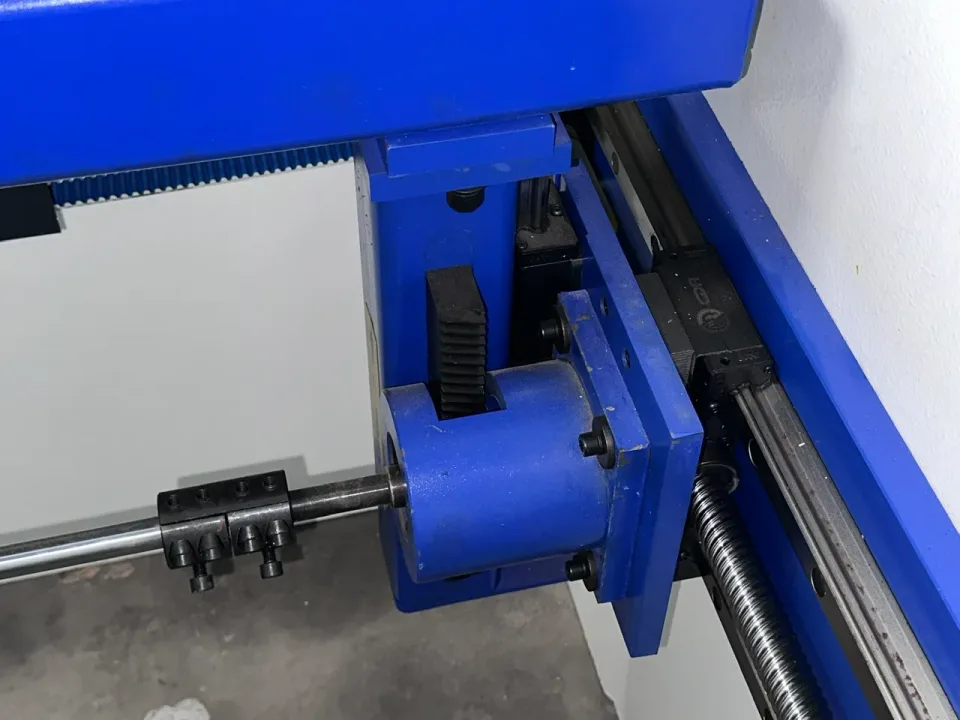

Backgauge X-axis travel520mm
Backgauge X-axis speed350mm/s
Backgauge R-axis travel160mm
Backgauge R-axis speed200mm/s
X, R axis repeatability±0.05mm
X, R axis positioning accuracy±0.02mm
Machine dimensions3300×1800×2550mm
Oil tank capacity300 L
NKAMComponent configuration can be specified to order; the final configuration is stated in the contract.
WE67K-135T/3200
Nominal bending force1350KN
Table length3200mm
Table width90mm
Distance between housings2600mm
Throat depth340mm
Ram stroke200mm
Max. open height470mm
Ram speedTrượt xuống 160, hồi về 120, làm việc 8
Main motor power11KW
CNC systemET15
Controlled axes4+1 trục (X, Y1, Y2, R+V)
Side plate thickness50mm
Ram thickness50mm
Bolster plate thickness60mm
Backgauge X-axis travel520mm
Backgauge X-axis speed350mm/s
Backgauge R-axis travel160mm
Backgauge R-axis speed200mm/s
X, R axis repeatability±0.05mm
X, R axis positioning accuracy±0.02mm
Machine dimensions4000×1800×2550mm
Oil tank capacity300 L
NKAMComponent configuration can be specified to order; the final configuration is stated in the contract.
WE67K-135T/4000
Nominal bending force1350KN
Table length4000mm
Table width90mm
Distance between housings3100mm
Throat depth340mm
Ram stroke200mm
Max. open height470mm
Ram speedTrượt xuống 160, hồi về 120, làm việc 8
Main motor power11KW
CNC systemET15
Controlled axes4+1 trục (X, Y1, Y2, R+V)
Side plate thickness50mm
Ram thickness50mm
Bolster plate thickness60mm
Backgauge X-axis travel520mm
Backgauge X-axis speed350mm/s
Backgauge R-axis travel160mm
Backgauge R-axis speed200mm/s
X, R axis repeatability±0.05mm
X, R axis positioning accuracy±0.02mm
Machine dimensions4800×1800×2550mm
Oil tank capacity300 L
NKAMComponent configuration can be specified to order; the final configuration is stated in the contract.
