Tube bender · NC tube benders
Tube bender NC DW50NC
NC hydraulic tube bender. Bends carbon steel round tube Φ50 × 2 mm, radius R260, angle 190°, accuracy ±0.1°, 5.5 kW hydraulic motor. In stock in Vietnam.
Machines available in Vietnam · Nationwide customer support
Quotation includes: VAT · Delivery and on-site installation · Operator training · 12-month warranty · See full policy →
If it's the machine, it's on us.
Detail photos
8 images
Not sure this model fits the tube you need to bend?
Technical specifications
Tube bender NC DW50NC
Compare the information with your material, part dimensions and expected output to select the right configuration.
ModelDW50NC
Max. tube bending capacityỐng tròn thép carbon Φ50*2 mm
Bending radius rangeR260 mm
Bending angle range190 Độ
Tube bending speedMa*30°/S
Tube bending speedMa*30°/S
Bending accuracy±0.10° Độ
Hydraulic motor power5.5kW
Hydraulic system pressure12 Mpa
Machine gross weight+900 kg
Machine dimensions (L × W × H)2800*750*1200 Mm
Solenoid directional valveNhật Bản · DSG-01-3C2-D24 · 4
Relief valveNhật Bản · SBSG-03-2B3B-D24 · 1
Vane pump(Doanh nghiệp liên doanh Trung–Mỹ) · PV2R2-23-F-U · 1
SealsĐài Loan

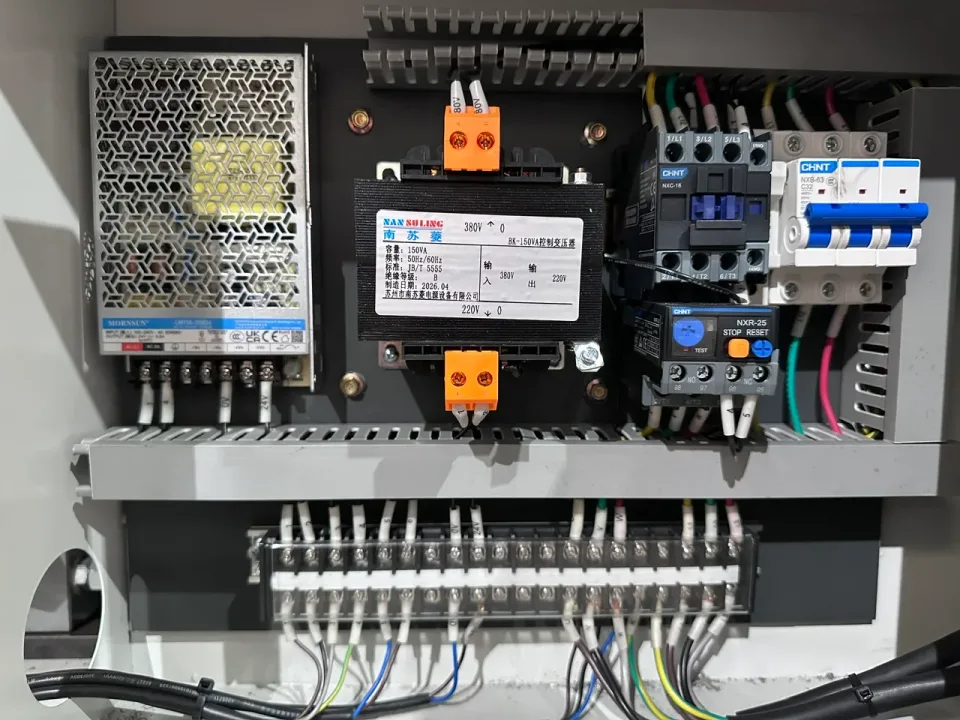

AC contactorLC1N-1810-220V · 1
Thermal overload relayLRN32N · 1
Circuit breakerC63 · 1
Proximity sensorOMRON – Nhật Bản · SN-04-N-DC24 · 2
Power switchĐài Loan · LRS-150-24 · 1

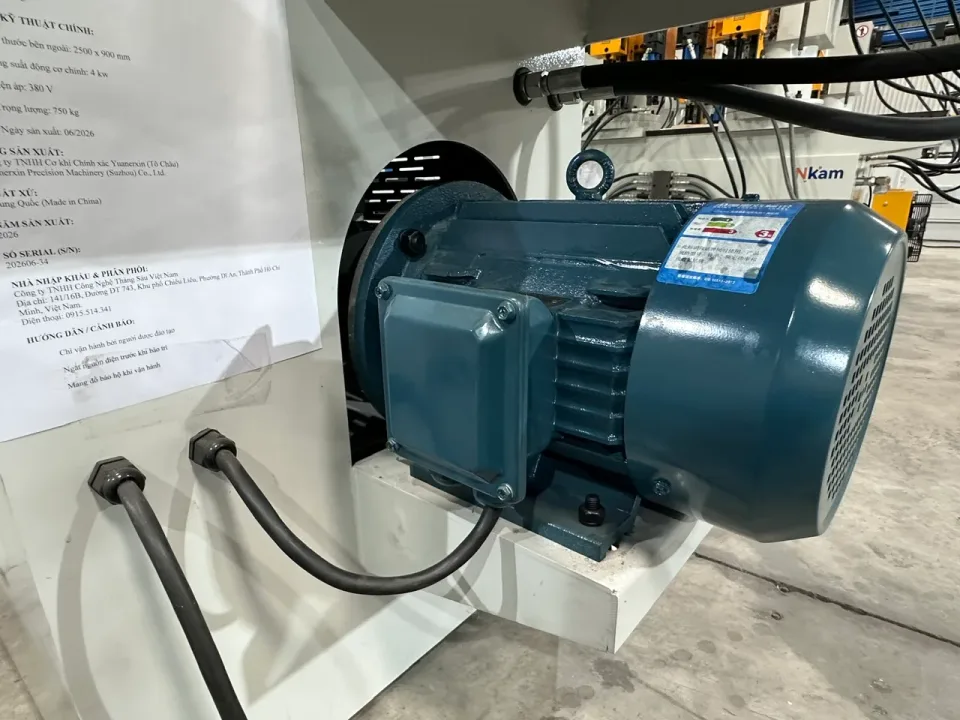

Electric motorhoặc · YX3-132S-5.5 · 1
Hydraulic hoseGiang Tô
NKAMComponent configuration can be specified to order; the final configuration is stated in the contract.
